Introduction
LattePanda is DFRobot’s line of x86 single-board computers, designed for people who want a very small board that can still run full Windows or Linux software. DFRobot is widely known for robotics, open electronics, and educational hardware. That background shows how LattePanda systems are compatible with a wide range of add-ons and accessories. The lineup is used in areas such as embedded computing, automation, IoT, and other small-scale deployments where size and flexibility are required.
In this update, the company sent more than just the Iota board. Alongside the base system, the package included additional hardware needed to demonstrate how the platform can be expanded to cool, network, wireless connectivity, support capabilities, and other features focused on implementation, giving a better idea of how Iota is actually used when everything is put together.
Here is a complete list of DFRobot parts shipped. The program was not compiled before, so I had to compile everything together, including:
- LattePanda Iota (8 GB RAM, 64 GB eMMC)
- LattePanda Iota Active Cooler
- LattePanda’s Smart UPS HAT
- 51 W PoE++ HAT for LattePanda Iota
- LattePanda Iota M.2 4G Expansion Board
- LattePanda Iota M.2 M-Key Expansion Board
- Intel AX210 M.2 A+E Key Wi-Fi Network Card 6E

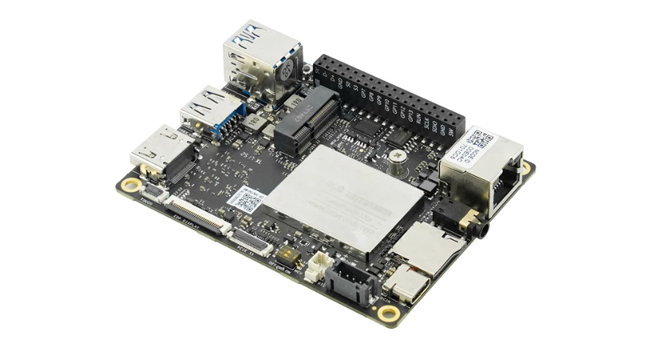

The basis of the setup is the LattePanda Iota itself, configured here with 8 GB of RAM and 64 GB of EMMC storage. Inside that board, DFRobot included an official cooler, a Smart UPS HAT, a 51 W PoE++ HAT, an M.2 4G expansion board, an M.2 M-Key expansion board, and an Intel AX210-based Wi-Fi 6E card. That’s a lot of hardware for such a small thing. DFRobot presents itself largely as a compact platform that can be configured for networking, battery-backed operation, wireless communication, and other module storage or expansion, depending on the application.
An active cooler is included because a board this small still needs proper airflow if it’s doing anything more than basic tasks. The Smart UPS HAT adds battery backup and power management, which is useful for installations that cannot cover periodic power outages. The 51 W PoE++ HAT allows the system to take both power and network via Ethernet, which is especially useful in remote setups where using additional cables is not appropriate. The 4G board adds support for cellular connectivity, the M-Key board provides a way to store NVMe or AI hardware, and the AX210 card adds modern Wi-Fi 6E and Bluetooth support.
That combination gives the LattePanda Iota more flexibility than a typical hobby board. It can be used for edge computing, remote monitoring, digital signage, manufacturing, industrial control, simple server work, or embedded systems that require a full Windows or Linux environment in a very small space. Home lab users will also find a good fit here, especially for those who want something compact for networking or automation projects, but still want the compatibility of standard x86 software.
Due to the nature of this build, and the limited RAM and storage available in the operating system, I was unable to run my full benchmark suite. Instead, I focus on a more targeted test set that fits those constraints. That ended up being a better fit for the platform though, as it allowed me to focus on the survivability of tasks and work environments that are relevant to how a program like this would be used in the real world.
So, let’s get into it.
| Details | |
|---|---|
| Model | LattePanda Iota DFR1226 build configuration |
| CPU | Intel processor N150 4 cores/4 threads Up to 3.6 GHz turbo |
| The Co-Processor | Raspberry Pi RP2040 For real-time I/O functions and microcontroller functions |
| Memory | 8 GB LPDDR5 Mounted, not upgradeable |
| Storage | 64 GB eMMC LPDDR5 4800 MT/s with in-band ECC Optional NVMe expansion with M.2 M-Key board |
| Pictures | Integrated Intel Graphics |
| Show Output | 1× HDMI 2.1 and 1× eDP 1.4b, 2 lanes, with HDMI up to 4096×2160 @ 60 Hz and eDP up to 1920×1080 @ 60 Hz |
| Communication | 3× USB 3.2 Gen 2 Type-A (10 Gbps), 1× USB 2.0 pin header, 1× USB Type-C PD 15 V (power only), 1× 1 GbE RJ45 with WOL support, HDMI 2.1, eDP 1.4b, 1× M.2 E-Key 01 PC, 2 PC 2230 and PC 2230. extension interface. |
| Wireless network | Intel AX210 Wi-Fi 6E card 2x 2 streams 2.4 GHz/5 GHz/6 GHz Bluetooth 5.2 |
| Cooling | Aluminum alloy heatsink, heat-resistant engineering plastic housing, PWM controller, 5 V/0.22 A, and up to 5300 RPM |
| UPS extension | DFR1247 Smart UPS HAT Supports 3 × 3.7 V 18650 Li-ion batteries USB Type-C PD 20 V input 5.5 × 2.5 mm DC jack input, 12 V to 24 V 10-pin output on LattePanda Iota |
| PoE expansion | DFR1248 51 W PoE++ HAT IEEE 802.3bt compliant Up to 51 W power delivery Gigabit Ethernet over a single cable Adds a second Gigabit Ethernet port |
| 4G expansion | DFR1249 M.2 4G LTE Expansion Board M.2 B-Key support Compatible with 3042 USB 2.0 4G modules Nano-SIM slot on board 4G module is not included |
| Storage Expansion | DFR1250 M.2 M-Key Expansion Board with PCIe 3.0 x1 over 16-pin FPC and support for 2230/2280 M-Key devices |
| Power Input | USB Type-C PD 15 V PH2.0 4-pin header, 10 V to 15 V DC Power options are UPS or PoE++ expansion boards |
| Operating system | Windows 10/11 Personality |
| Size | 88 × 70 × 19 mm Just a blank board |
| Bundle Price | $278.50 before batteries, 4G module, and any external power supply. |
